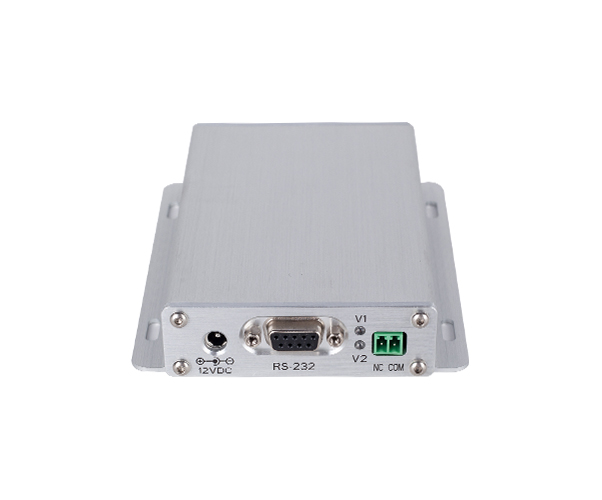

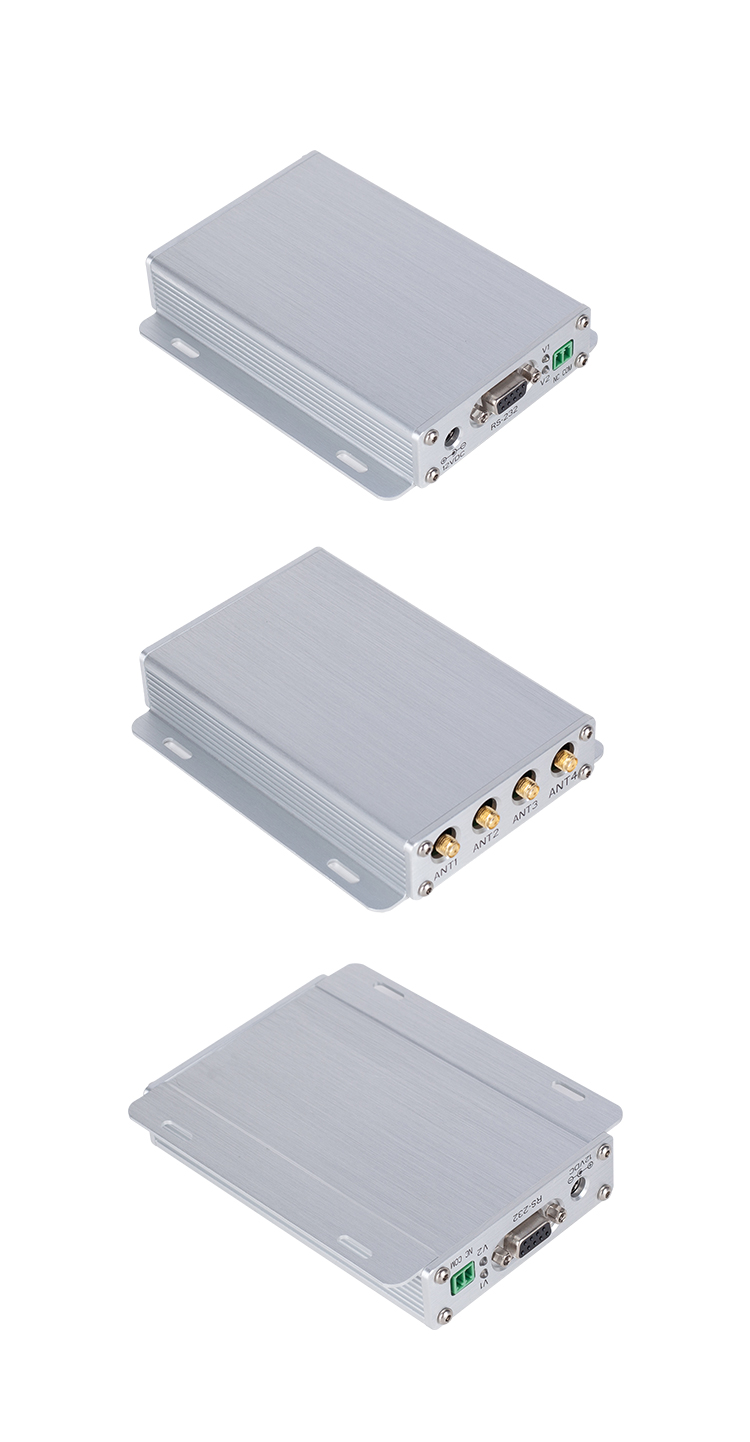

High Speed ISO15693 RFID Reader , Fixed RFID Reader With 4 Antenna Interface DC12V

RD242 Internet Of Things RFID reader works at 13.56MHz and supports ISO 15693 and ISO 18000-3M1 protocols. It has high sensitivity and fast anti-collision algorithm, the reading speed is up to 50 Pieces per second. It supports addressable multiple antenna ports and could be linked with standard 50ohm RFID antenna with effective distance up to 65cm. There are two kind of work mode: Host mode and Scan mode being set through software. When at task idle, the RF could be turn down automatically.

Get Best Price Contact Now Chat Now

Previous产品：12 Channels Long Range RFID Reader / High Power RFID Reader For RFID Intelligent Vending Machine

Next产品：Silver Color Flat 13.56MHz RFID Settlement Desk Reader Antenna High Read Rate 445*365*17mm Size

Description

Basic Information:

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	RD242
Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Product Features:

Be integrated with 1 relay output

Host and Scan Mode: Support (set through software)

Support EMI detection to check surrounding interference

Support to turn off radio frequency automatically when at task idle

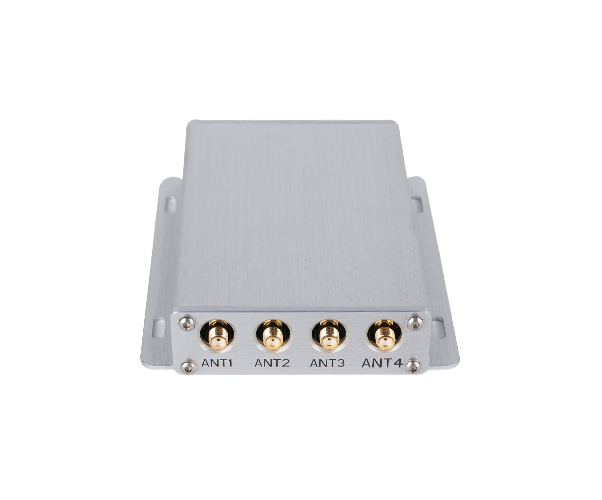

Support addressable multiple antenna ports

Compatible Protocols:	ISO 15693 And ISO 18000-3M1	RF Power:	1.5W
Reading Range:	65cm	Communication Interface:	RS232 / RS485
Working Voltage:	DC 12V	Max Power Consumption:	≤3W
Maximum Power Consumption:	≤35W	Shell Material:	Aluminum Alloy
Dimension:	200×168×33mm	Maximum Operating Temperature	50℃
High Light:	SMA Antenna HF RFID Reader, ISO 15693 HF RFID Reader, Host Mode Rfid Reader
