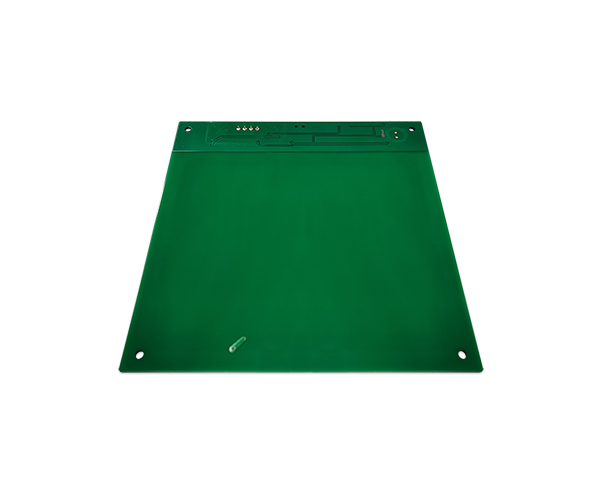

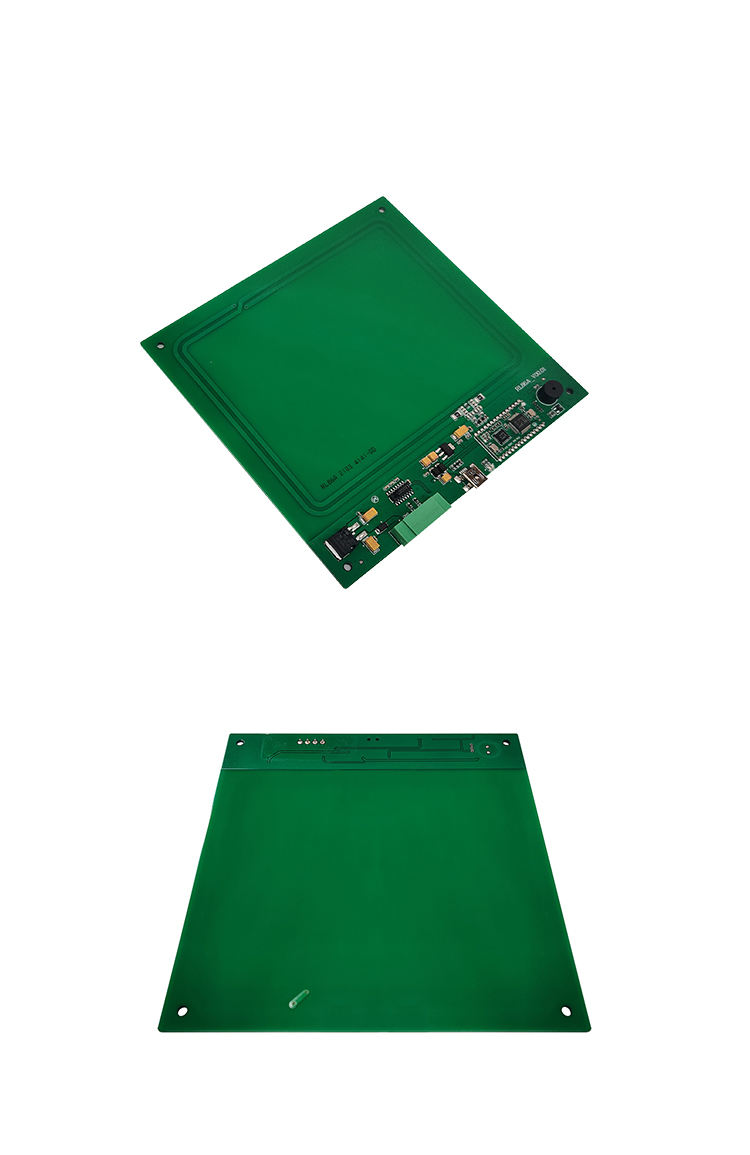

HF Embedded RFID Reader USB RS232 Communication 150*150 mm PCB Board

RL86A is a light and slim USB and RS232 RFID reader writer which is already integrated with antenna that could be easily covered by your own body case to do OEM design. It is designed upon fully self-intellectual property and customized according to customers application requirements.
Description

Basic Information:



Place of Origin: CHINA
Brand Name: Andea Electronics
Model Number: RL86A
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month






Supported Tags:



NFC Forum Type 1: Innovision Topaz512

NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.

NFC Forum Type 3: Sony Felica [only support Polling]

NFC Forum Type 4: Mifare DESFire EV1

NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF-I plus

Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini

ISO18000-3M3 Type: ICODE ILT

ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC



Operating Frequency: 13.56 MHz Compatible Protocols: ISO14443, ISO15693 And ISO18000-3M3
Reading Range: ISO15693 25cm Communication: USB And RS232
Weight: 75g OEM: Available
High Light: low power rfid reader, rfid multi reader













Product Application:

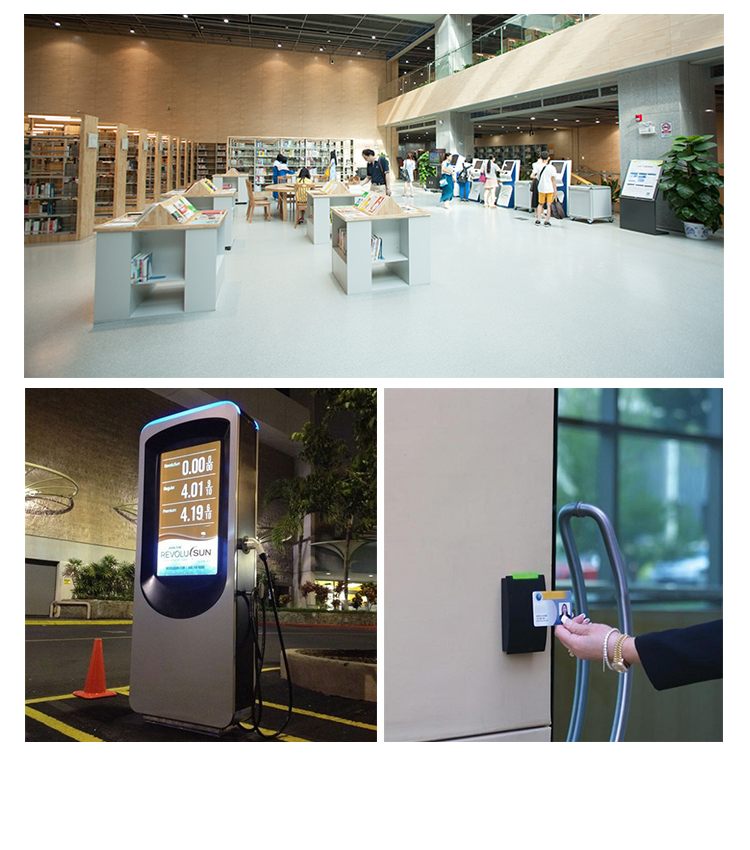

It is widely used in charging pile, parking card dispenser, access control, self-service library, etc.
