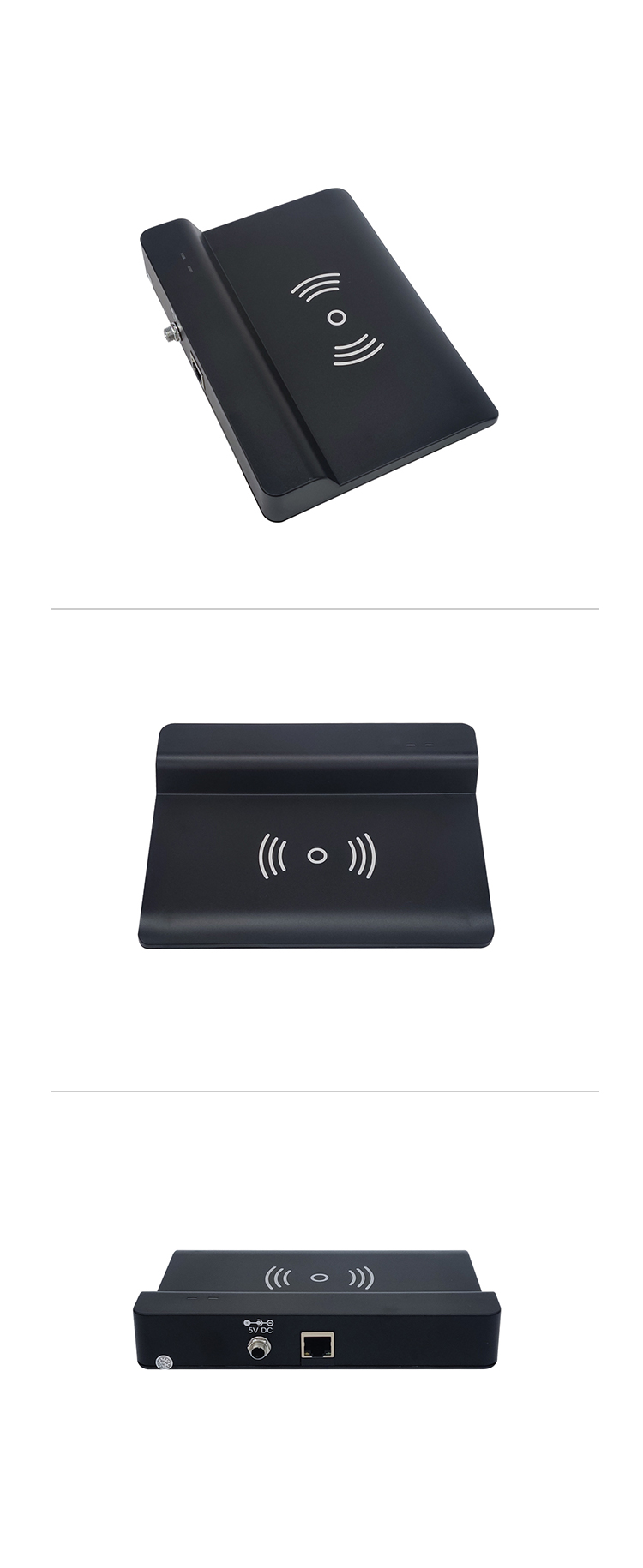

RJ45 Interface IOT RFID Reader In Desktop Card Reading Writing

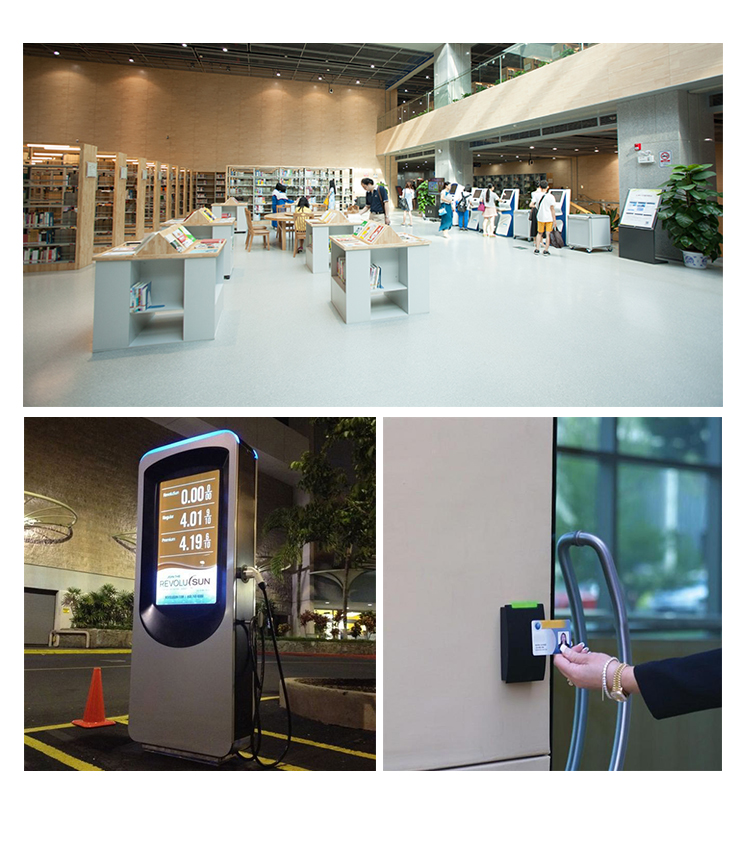

RL86E is a micro-power multi-protocol reader, which meets the ISO 15693, ISO 14443 and ISO18000-3M3 protocol standards at the same time. It has high sensitivity reading and writing performan and fast anti-collision prossing algorithm. It supports reading multiple electronic tags of each protocol at the same time. The product is widely used in desktop card, electronic bills, jewelry, libraries and other fields.

Get Best Price Contact Now Chat Now

Previous产品：Small Portable RFID USB Reader ISO 15693 ISO 14443A / B ISO 18000 - 3M3 NFC Reader

Next产品：HF Multi-protocol RFID Reader,Built-in Micro-power Integrated-in-one Reader To Read Library Card

Description

Basic Information:

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	RL86E
Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Product Features:

NFC Forum Type 1: Innovision Topaz512

NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.

NFC Forum Type 3: Sony Felica [only support Polling]

NFC Forum Type 4: Mifare DESFire EV1

NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus

Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini

ISO18000-3M3 Type: ICODE ILT

ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC

Operating Frequency:	13.56MHz	Compatible Protocol:	ISO 15693, ISO 18000-3M3 And ISO 14443A/B
Communicate Interface:	Ethernet	Supply Voltage:	DC 5V
Dimensions:	175×130×32mm	Anti-collision Algorithm:	Support
High Light:	13.56MHz IOT RFID Reader, RJ45 IOT RFID Reader
