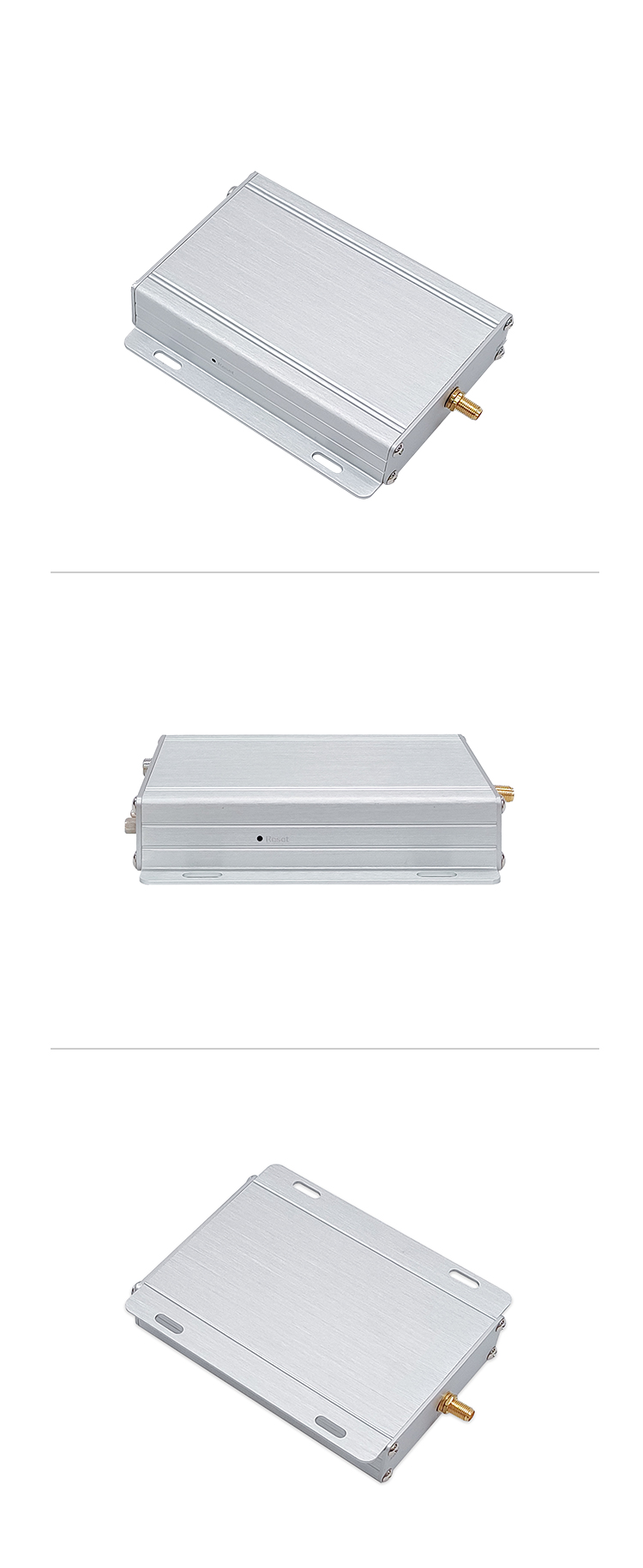

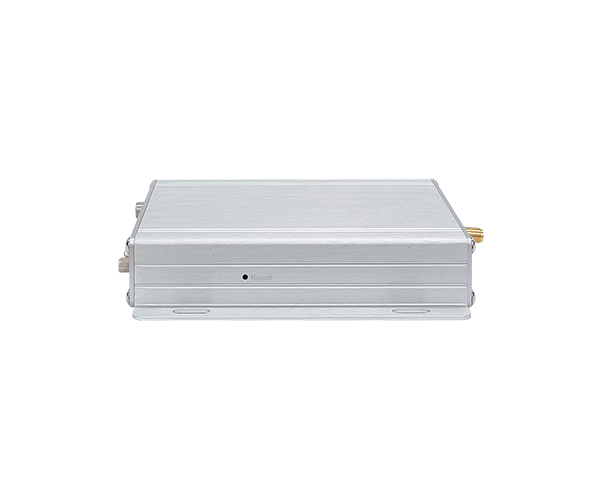

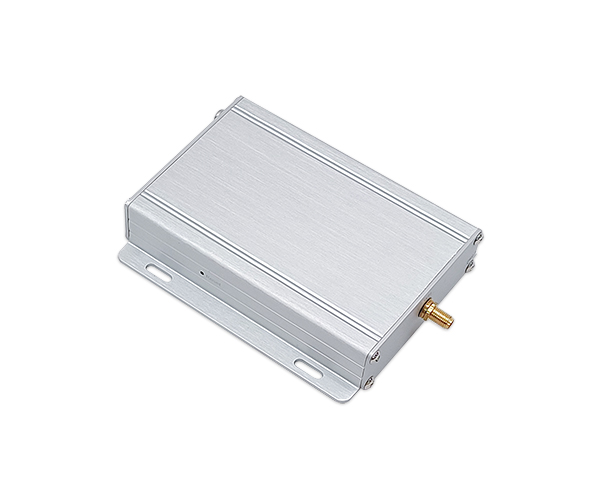

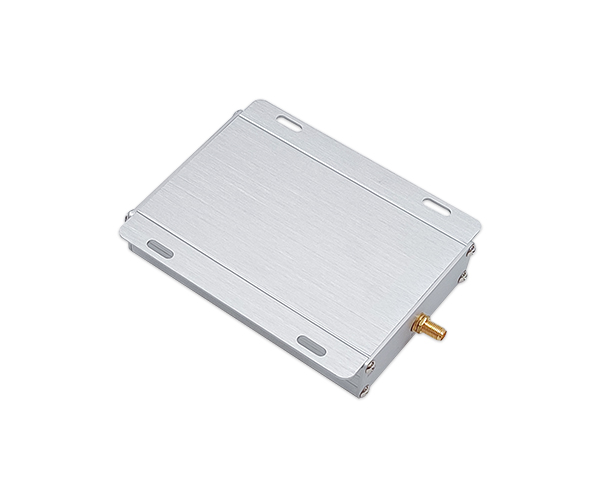

ISO 15693 & ISO 18000-3M1 Mid Range Smart RFID Card Reader Long Reading Distance

RD2101 high frequency medium power reader has high sensitivity read-write performance and adopts fast anti-collision processing algorithm. The product supports electronic tags that comply with ISO 15693 and ISO 18000-3M1 standard, and the reading speed of tag is up to 70 pieces per second.The products have been widely used in libraries, archive management, production process automation, laundry factory automation management, drug tracking and other fields.

Get Best Price Contact Now Chat Now

Previous产品：Micro Medium Power IOT RFID Reader Module In RFID Book Self - Service Equipment

Next产品：HF RFID Card Reader Writer 13.56MHz Communication Interface RS232 / RS485 For Parking System

Description

Basic Information:

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	RD2101
Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Product Features:

Support ISO 15693 and ISO 18000-3M1 standard.

RF power: 0.25~1.5W (adjustable).

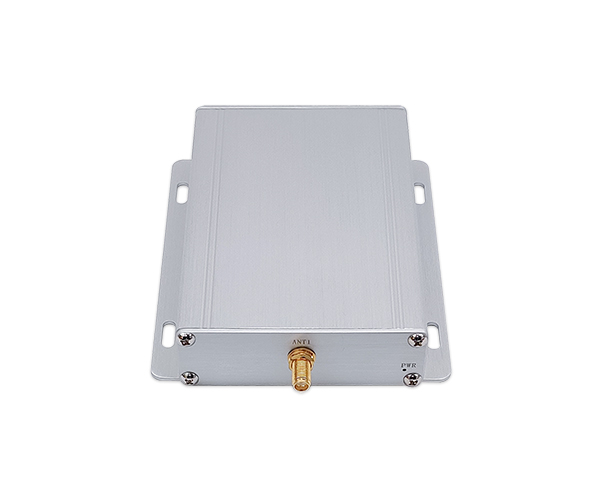

Antenna interface: SMA(50Ω).

Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec.

Reading and writing range: single antenna can reach 75cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).

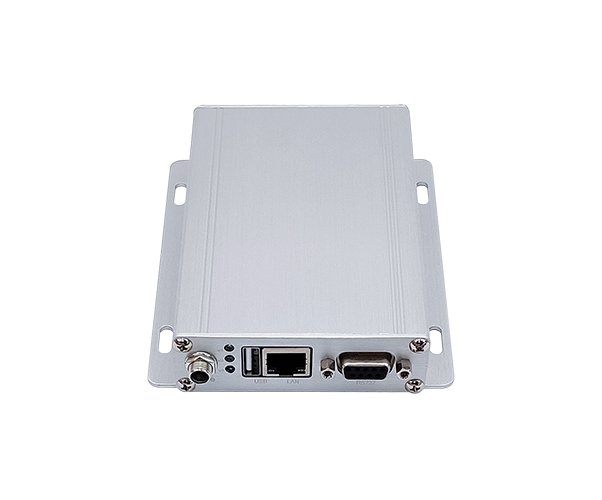

Communication interface: RS232, RS485, Ethernet, USB.

Support noise detection, can detect the environment whether there is interference.

Power supply: 12V DC.

It has multiple working modes which can be configured through software tools.

With short circuit protection and overheat protection function.

RF Power:	0.25~1.5W (adjustable)	Antenna Interface:	SMA(50Ω)
Reading Speed:	70pcs/sec	Communication Interface:	RS232, RS485, Ethernet, USB
Power Supply:	12V DC	Compatiable Protocol:	ISO/IEC 15693 And ISO/IEC 18000-3M1
Operating Frequency:	13.56MHz	Working Mode:	Host Mode And Auto Read Mode（configurable）
High Light:	Mid Range Smart RFID Card Reader, ISO 15693 RFID Card Reader, 0.25w RFID Card Reader

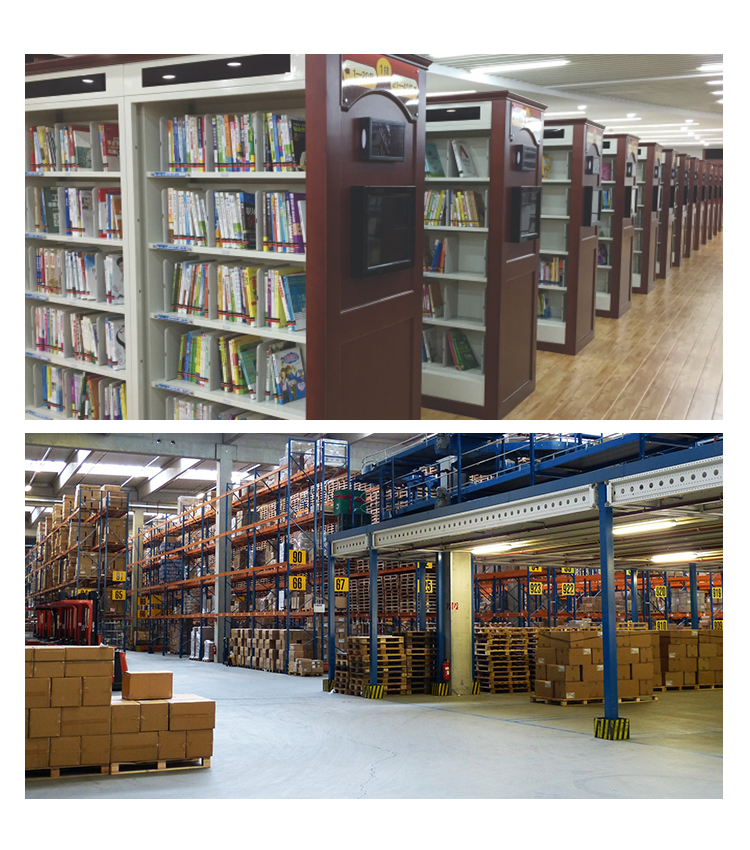

Product Application:

It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
