ISO18000-3m1 Mid Range RFID Reader Module For Food And Medicine Supply Chain Management

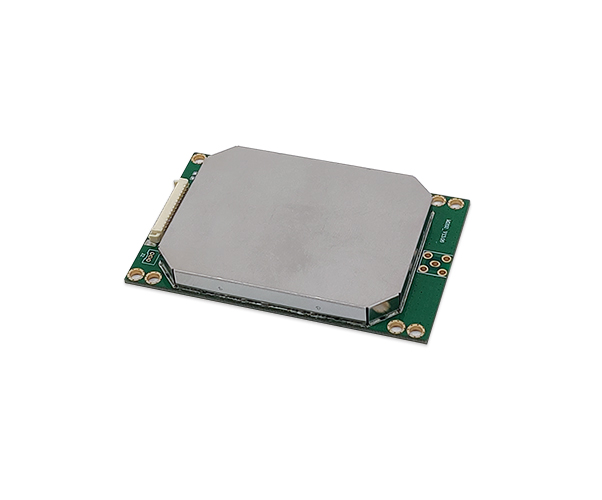

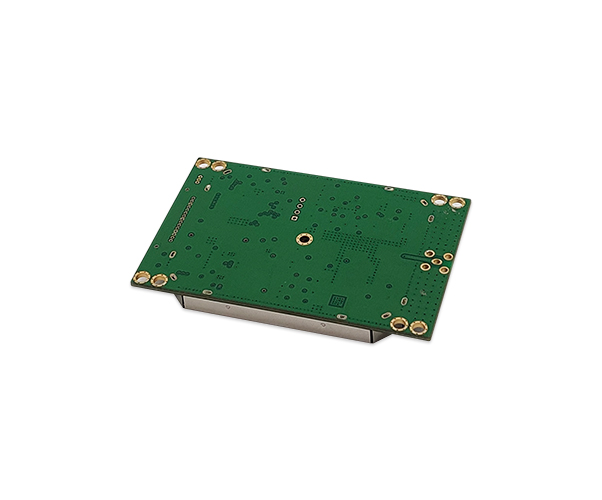

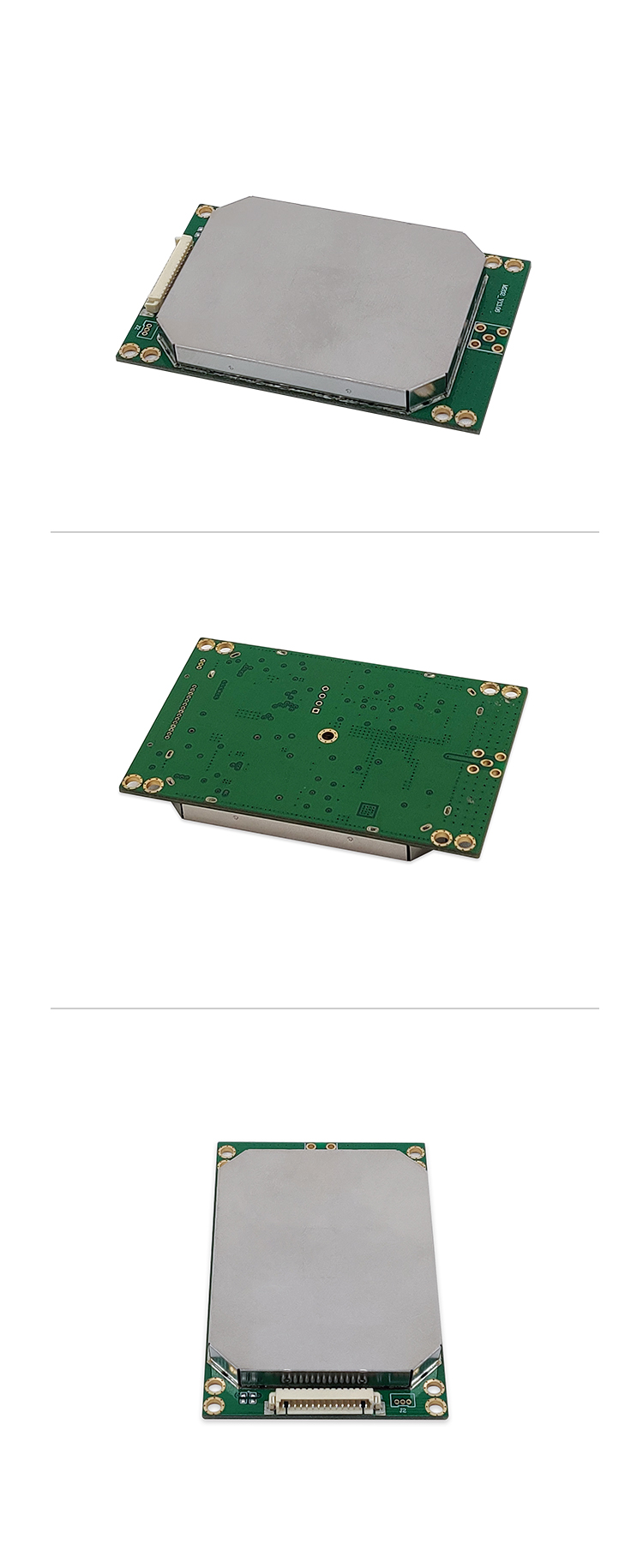

M202 high frequency medium power RFID reader module is designed upon fully self-owned intellectual property rights. It supports ISO 15693 and ISO 18000-3 mode 1 protocols. With high-sensitivity and fast anti-collision algorithm, its identify speed is up to 50 Pieces per second. It adopts low power design, mainly being embedded in pad reader, self-service kiosk, etc.

Get Best Price Contact Now Chat Now

Previous产品：High Frequency RS232 Ethernet ISO15693 RFID Card Reader Long Range Writer

Next产品：Micro Medium Power IOT RFID Reader Module In RFID Book Self - Service Equipment

Description

Basic Information:

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	M202
Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Product Features:

Operating frequency at 13.56MHz in accordance with ISO15693 and ISO18000-3M1 standards

Radio frequency power is 0.25-1.5W

RS232 communication interface

Identification distance could be 65cm when link with suitable antenna and read standard card

Anti-collision algorithm supports to identify 50pcs per sond mostly

Working voltage: DC12V, ≤400mA and max power consumption only 3.5W

Support both Host Mode and Scan Work Mode

Support EMI detection to check surrounding interference

Support to turn off radio frequency automatically when at task idle

Compatible Protocol:	ISO 15693 And ISO 18000-3M1	Reading Range:	65cm
EMI Detection:	Support	Work Mode:	Host And Scan
Working Voltage:	DC 12V	Max Power Consumption:	3.5W
High Light:	rfid read write module, hf rfid reader module

Product Application:

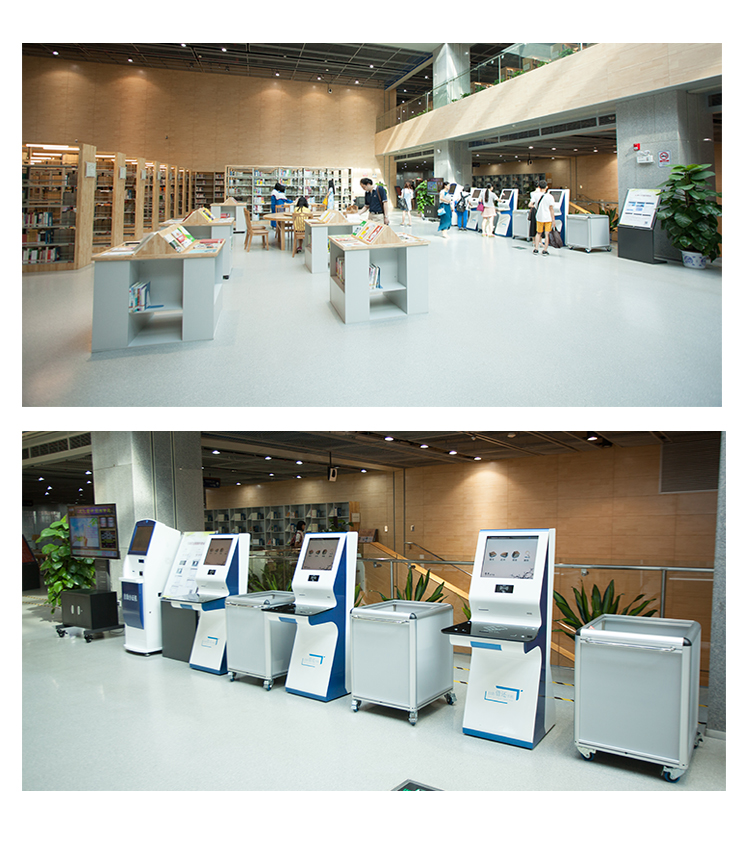

Andea Electronics reader modules have been adapted by kinds of handheld readers, integrated readers, mobile terminals and have been widely applied to Toy Industry, Food and Medicine Supply Chain Management, Retail System, Document Tracking, Airline Baggage Tracking and other fields.
